20 ton Diesel Oil Gas Fired Steam Boiler for Mexico

Product thermal capacity: 1-20 t/h
Working pressure: 0.7-2 Mpa
Available fuel: Nature gas, coke oven gas, biogas, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

Send Email Enquiry
  • Introduction
  • Parameters
  • Gallery

High Quality

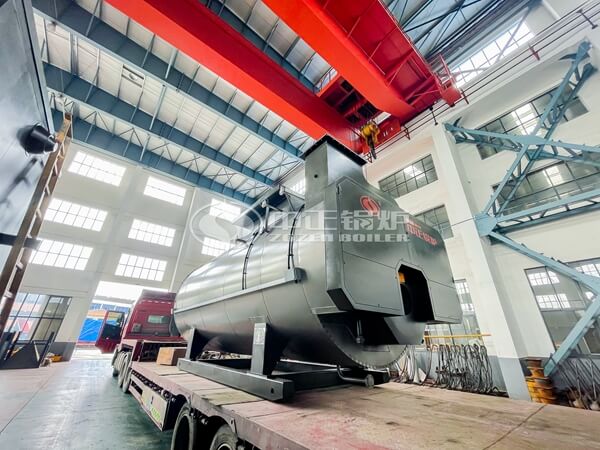

WNS series is a classical shell type boiler, with classical design: firetube wetback 3pass. Its average thermal efficiency >95%, design working life span more than 15years. Equipped with well-known auxiliary parts, such as BALTUR/RIELLO- Burner, DANFOSS- Pressure Controler, SIEMENS- PLC operation system, LEO- Multistage Pump, etc. to ensure the boiler’s steady performance. The entire system warranty period: 2 Years.

Free-Installation
Before the shipment, complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, no need installation/ assembly. Just join the boiler to water/ gas/ electricity. Comparing with other traditional boilers in the market, our boiler does save lots of cost/ energy/ time in installation. The additional, the entire boiler system is portable.

Excellent Structure

  1. Free-Assembly
  2. Portable System
  3. Three Fire-Passes
  4. New Wet-Back Design
  5. Corrugated Furnace, Fire-tube

Safety Technologies

  1. Automatic Ignition
  2. Automatic Water-Level Control
  3. Automatic Over-Pressure Relief
  4. Automatic Interlock Stop Protection
  5. Automatic Fire/ Pressure Regulation

Simple Operation

  1. Automatic PLC ON/OFF
  2. Visible Working Pressure
  3. Visible Steam Temperature
  4. Adjustable Working Pressure
  5. Visible Exhaust-gas Temperature
Model
WNS0.5-1.0-Y(Q)
WNS0.7-1.0-Y(Q)
WNS1-1.25-Y(Q)
WNS1.5-1.25-Y(Q)
Steam Capacity
500 KG/H
700 KG/H
1000 KG/H
1500 KG/H
Boiler Horsepower
32 HP
45 HP
64 HP
96 HP
Working Pressure
0-10 BAR
0-10 BAR
0-13 BAR
0-13 BAR
Steam Temperature
≤184 ℃
≤184 ℃
≤194 ℃
≤194 ℃
Fuel Type
Gas, Oil
Gas, Oil
Gas, Oil
Gas, Oil
